SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: CE

Fuel: Electric

Hign-concerned Chemical: None

Origin: CHINA

Power (W): Electric

Structure: Diaphragm Pump

12V 24V Seaflo 1GPM/40PSI Marine Water Pump Diaphragm Pumm Boat Accessories Showers Toilets

The 21 Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing. The 21-series of diaphragm pumps are self-priming and can be run dry without harm. It provides up to 1.2 gallons per minute. Miniature multi outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.

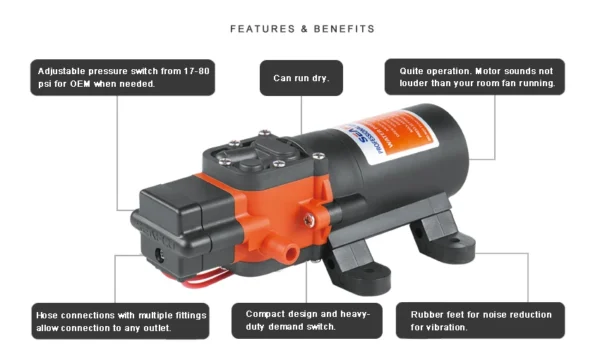

Features and Benefits:

-Adjustable pressure switch from 17-80psi for OEM when needed.

– Quite operation. Motor sounds not louder than your room fan running.

– Hose connections with multiple fittings allow connection to any outlet.

– Rubber feet for noise reduction for vibration.

– Compact design and heavy-duty demand switch.

– Can run dry.

TYPICAL APPLICATIONS:

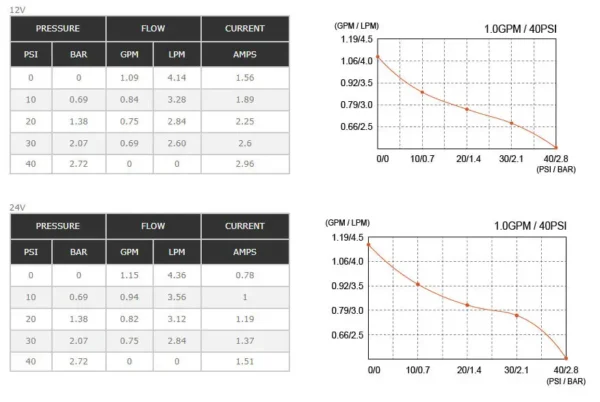

Parameters :

Performance Curve

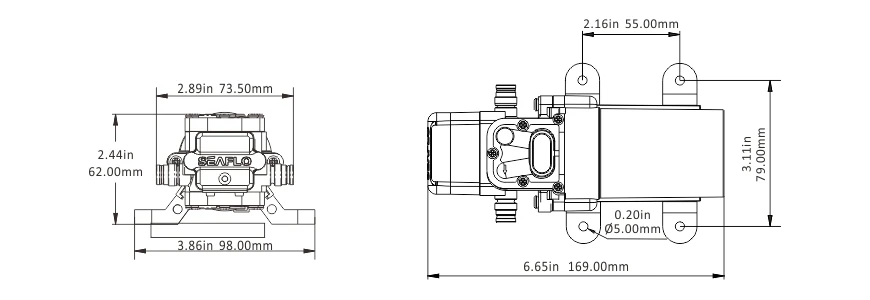

Dimensions:

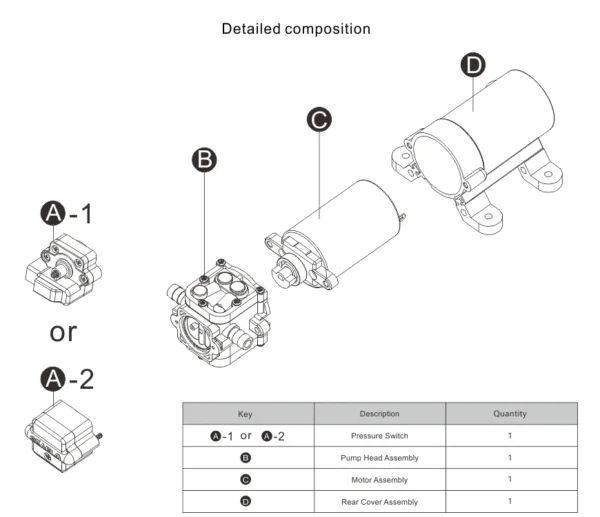

Explosive View:

If you want to order more, please feel free contact with us via email: cherrylau@junqitrading.com
