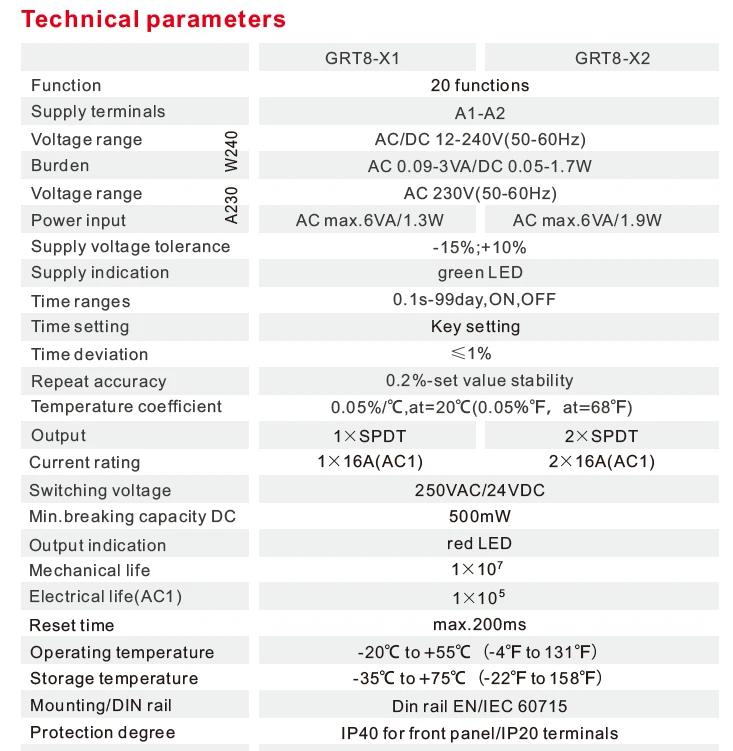

SPECIFICATIONS
Brand Name: GEYA
Certificate: CE CB ROHS
Certification: CE,RoHS
Contact Arrange: SPDT
Contact Load: Low Power
Function: Delay on, Delay off, Interval, Cycle, Single Shot, Latching, Pulse
Hign-concerned Chemical: None
Model Number: GRT8-X Multifunction Time Relay
Origin: Mainland China
Output Contact: 1SPDT OR 2SPDT
Power Source: AC

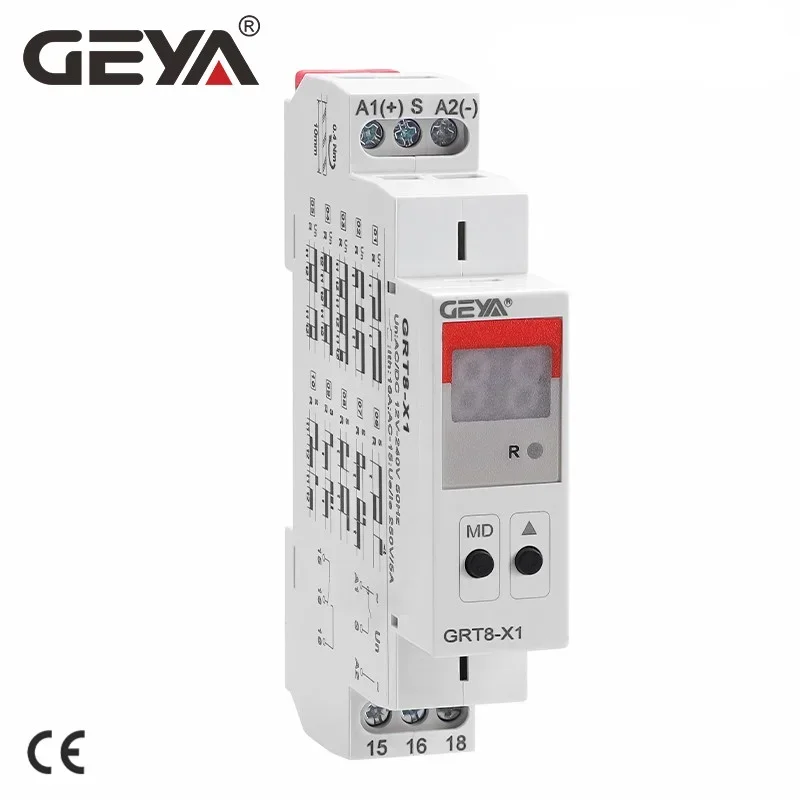

Product Name: GRT8-X Digital Multifunction Time Relay
Protect Feature: Sealed
Rated Current: 16A
Rated Frequency: 50/60Hz
Theory: Time Relay
Time Range: 0.1s-99days (wide ranges)
Use: General Purpose
Voltage: 220V,AC230V OR AC/DC12-240V
is_customized: Yes
GEYA GRT8-X Digital Display Multifunction Timer Relay 16A with 20 Function Choices AC DC 12V 24V 220V 230V
General
-Multifunctional time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control.
-With 20 delay modes, the delay range covers 0.1 seconds to 99 days.
– Voltage Range: AC230V or AC/DC12-240V
-With 20 delay modes, the delay range covers 0.1 seconds to 99 days.
–
GRT8-X Digital Display Multifunction Time Relay– Voltage Range: AC230V or AC/DC12-240V
– Output: 16A 1SPDT (GRT8-M1) or 2SPDT (GRT8-M2)
– 20 delay modes:
– 5 delay modes controlled by power supply
– 13 delay modes controlled by signal
– ON, OFF mode
– 5 delay modes controlled by power supply
– 13 delay modes controlled by signal
– ON, OFF mode
– Ultra wide delay range, 0.1 seconds – 99 days can be set..
– 1-MODULE 18mm, DIN rail mounting, convenient install.

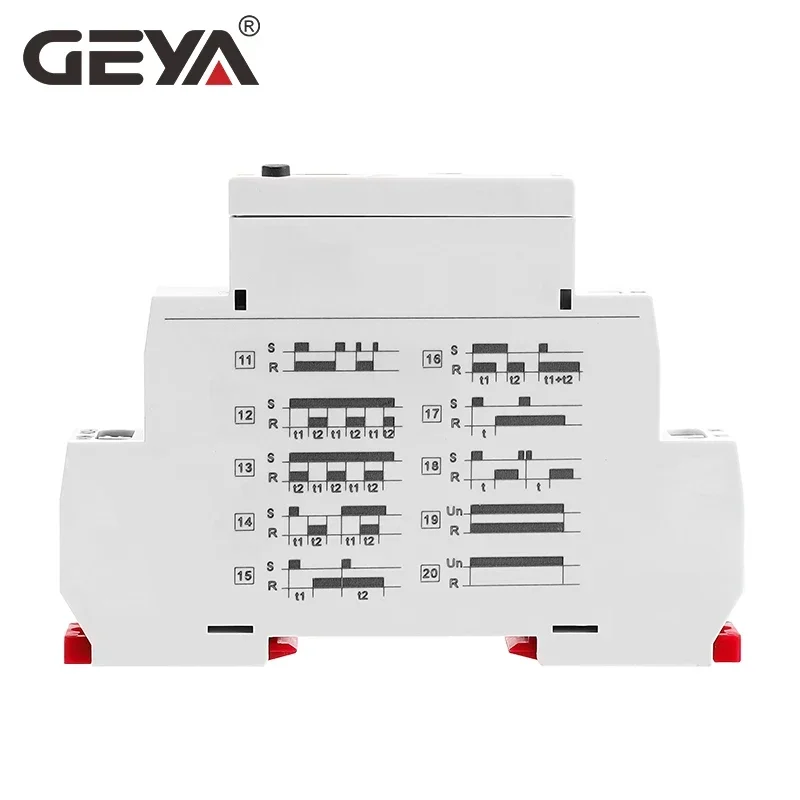

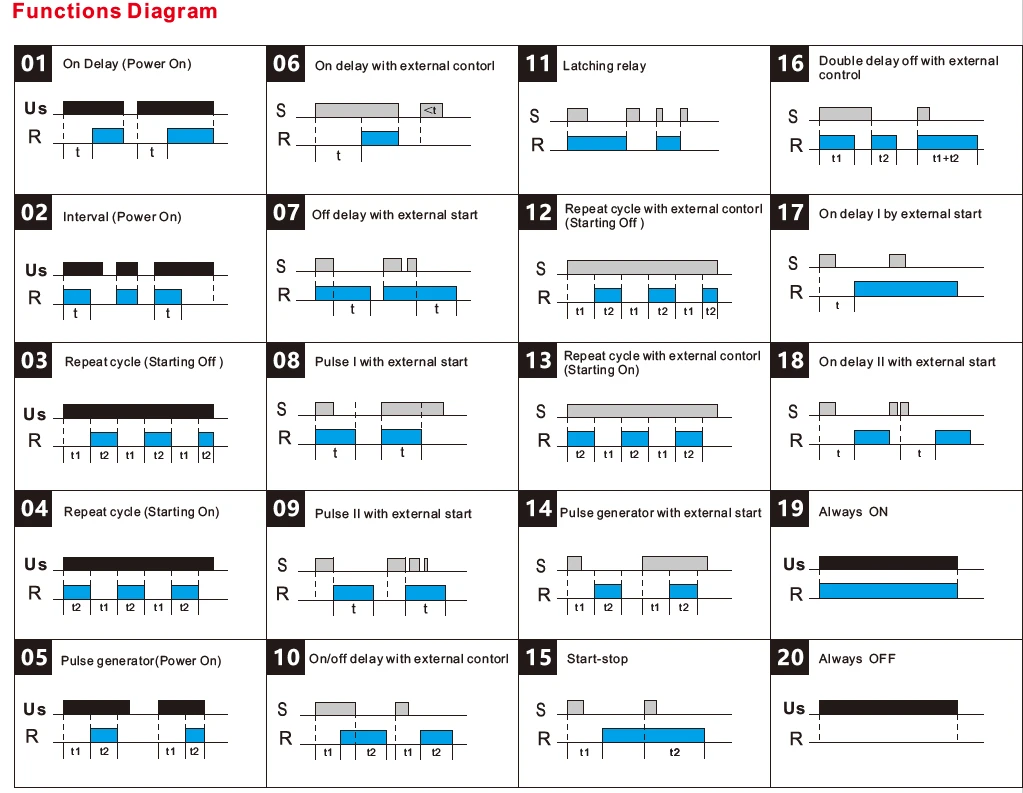

GRT8-X Digital Display Time Relay 20 Functions

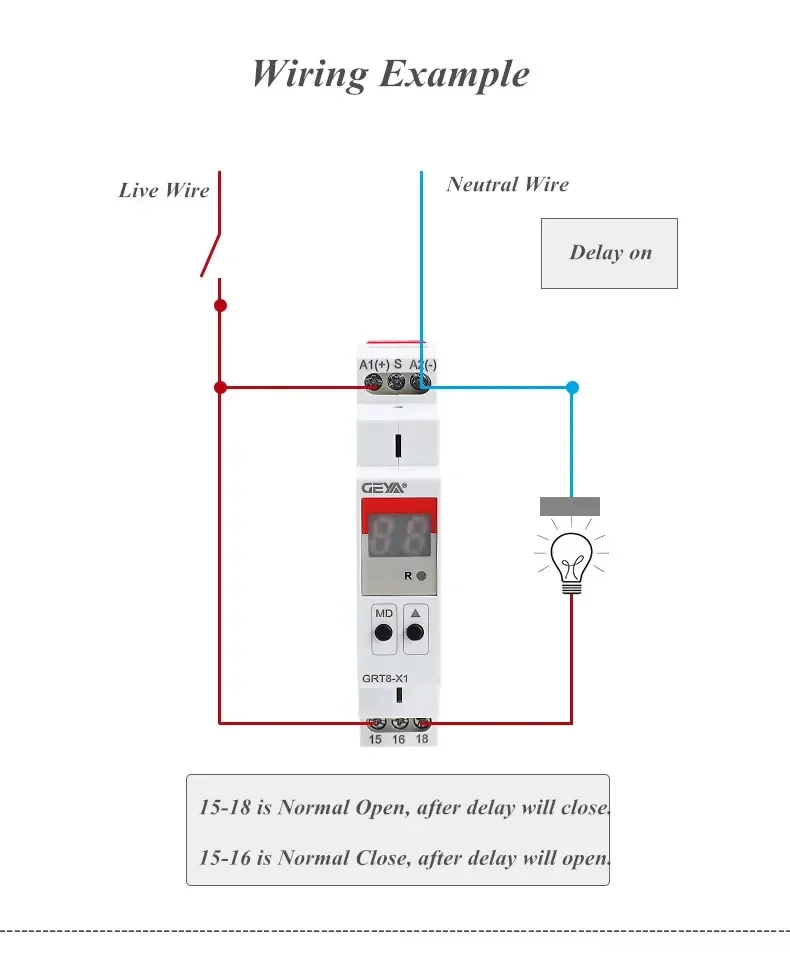

Wiring Example

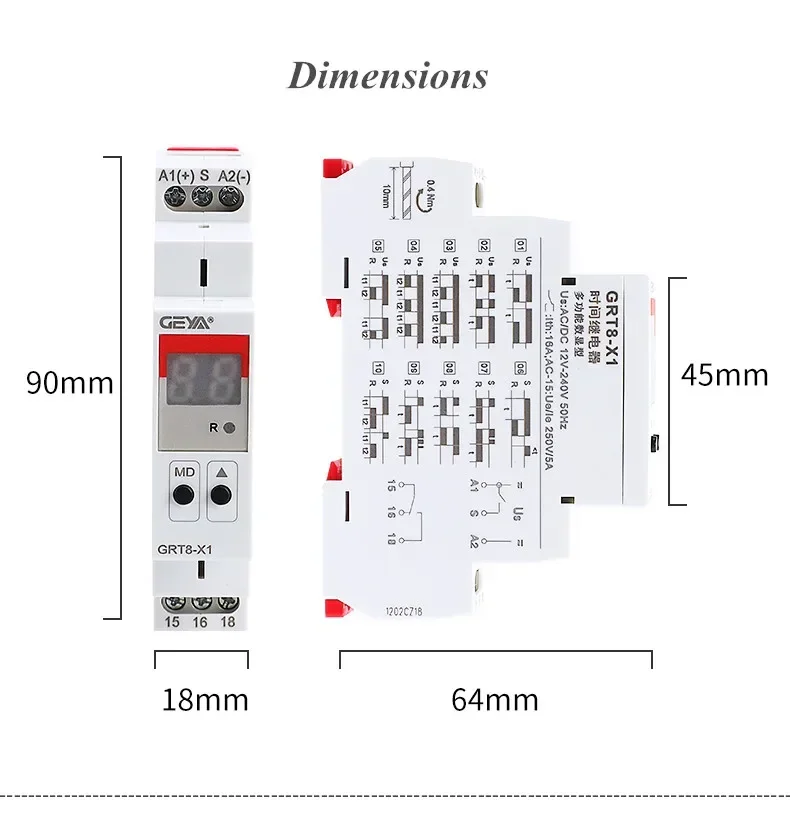

Standard Din Rail Size
Back to GEYA Store Top Selling Products
GRT8-X Digital Display Time Relay 20 Functions

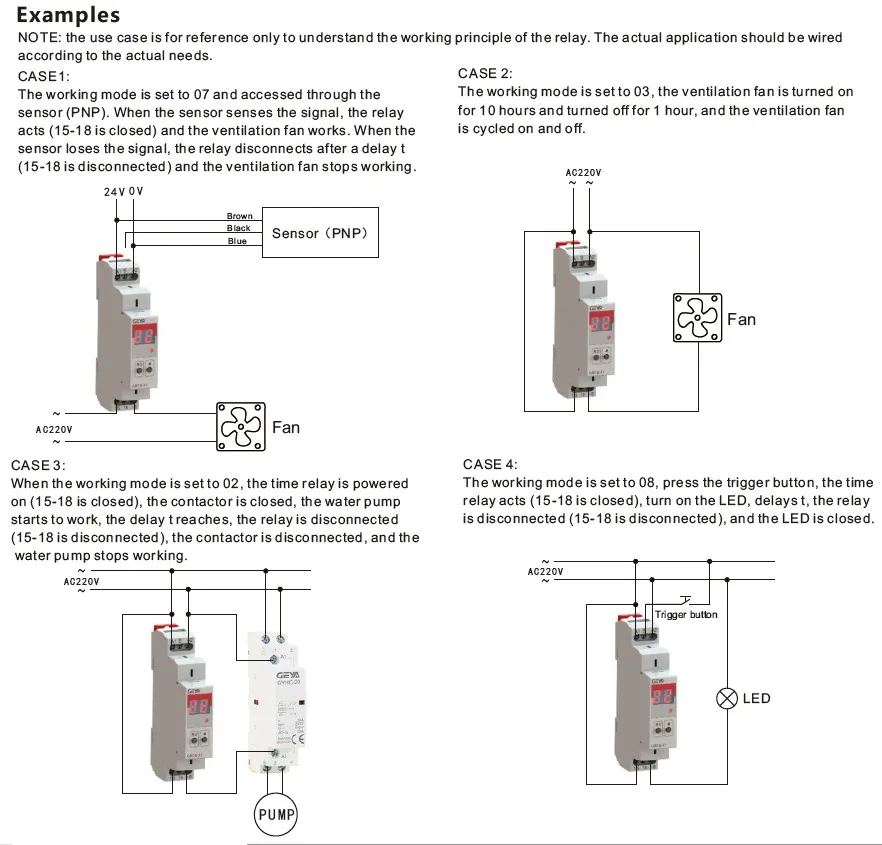

Wiring Example
Standard Din Rail Size
