HPA Regulator with Pin Air Valve Regulated Output 0 to 3000psi M18*1.5, 5/8"-18UNF Dual Gauge Adjustable Pneumatic Fill Station

Max Input Pressure: 4500psi

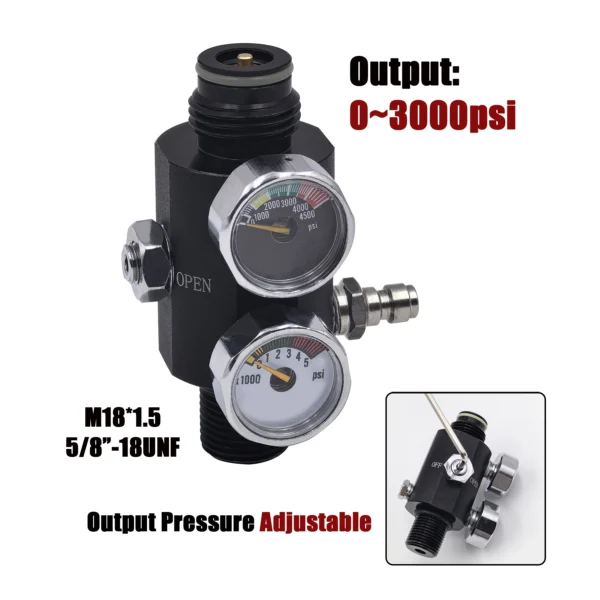

Output Pressure: 0 to 3000psi adjustable

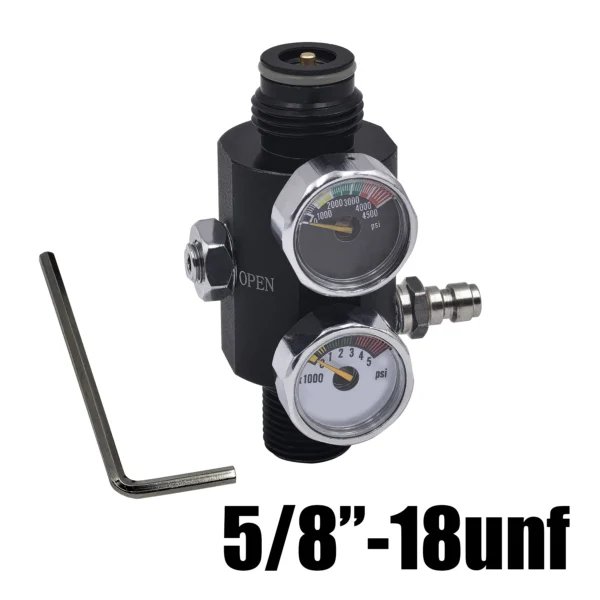

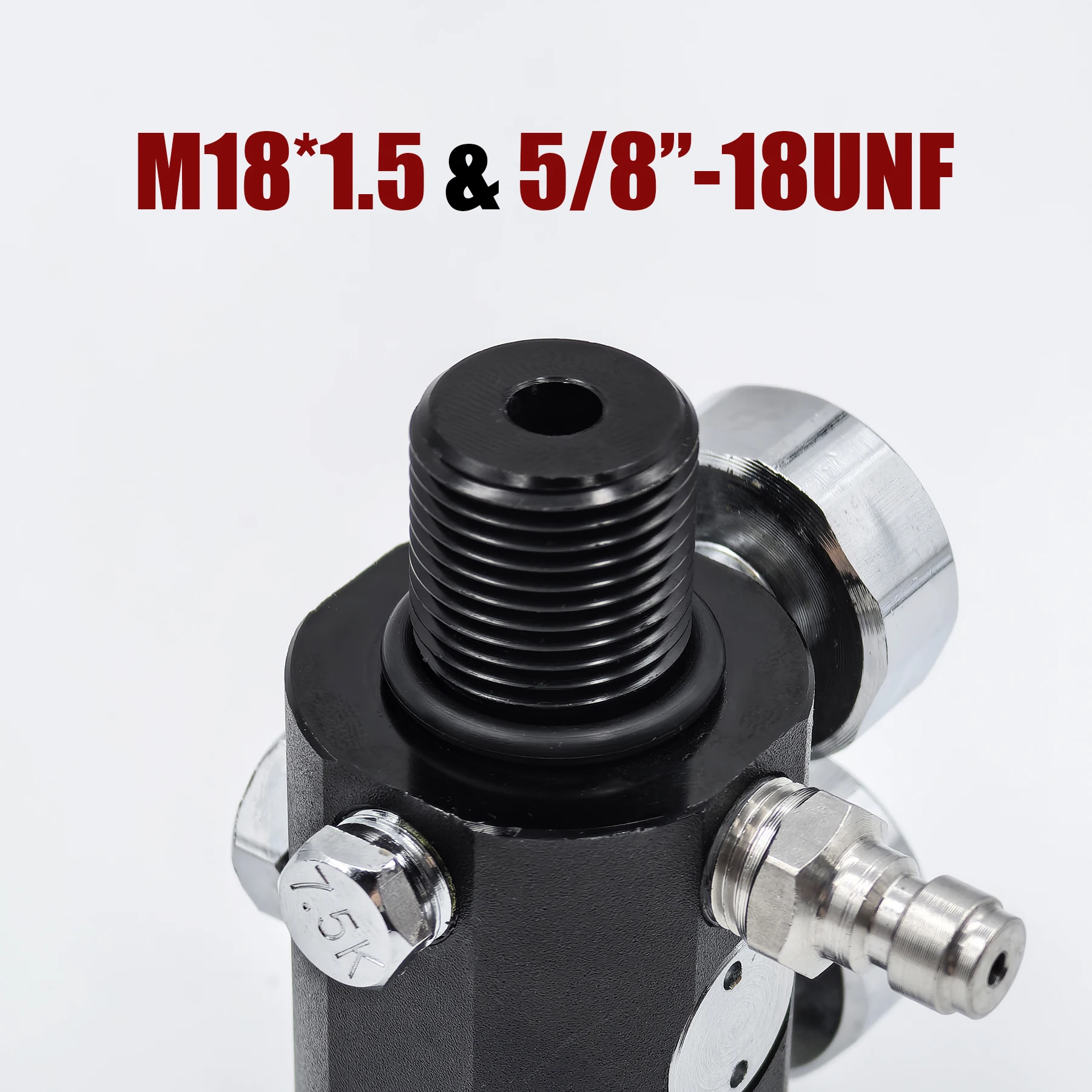

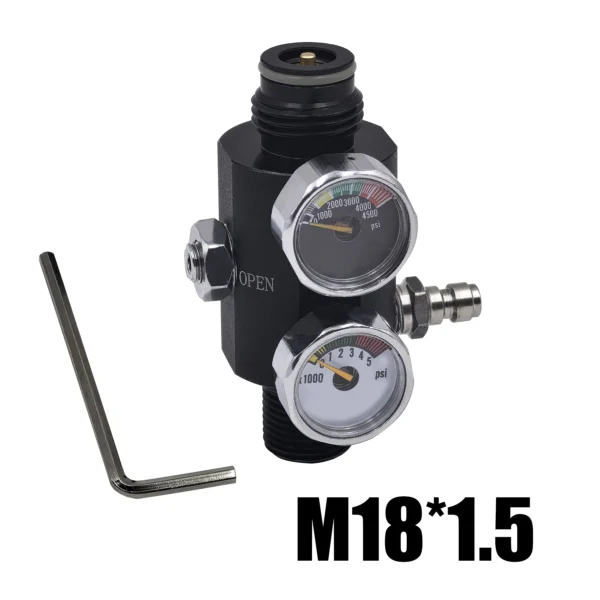

Input thread: M18*1.5 or 5/8"-18UNF

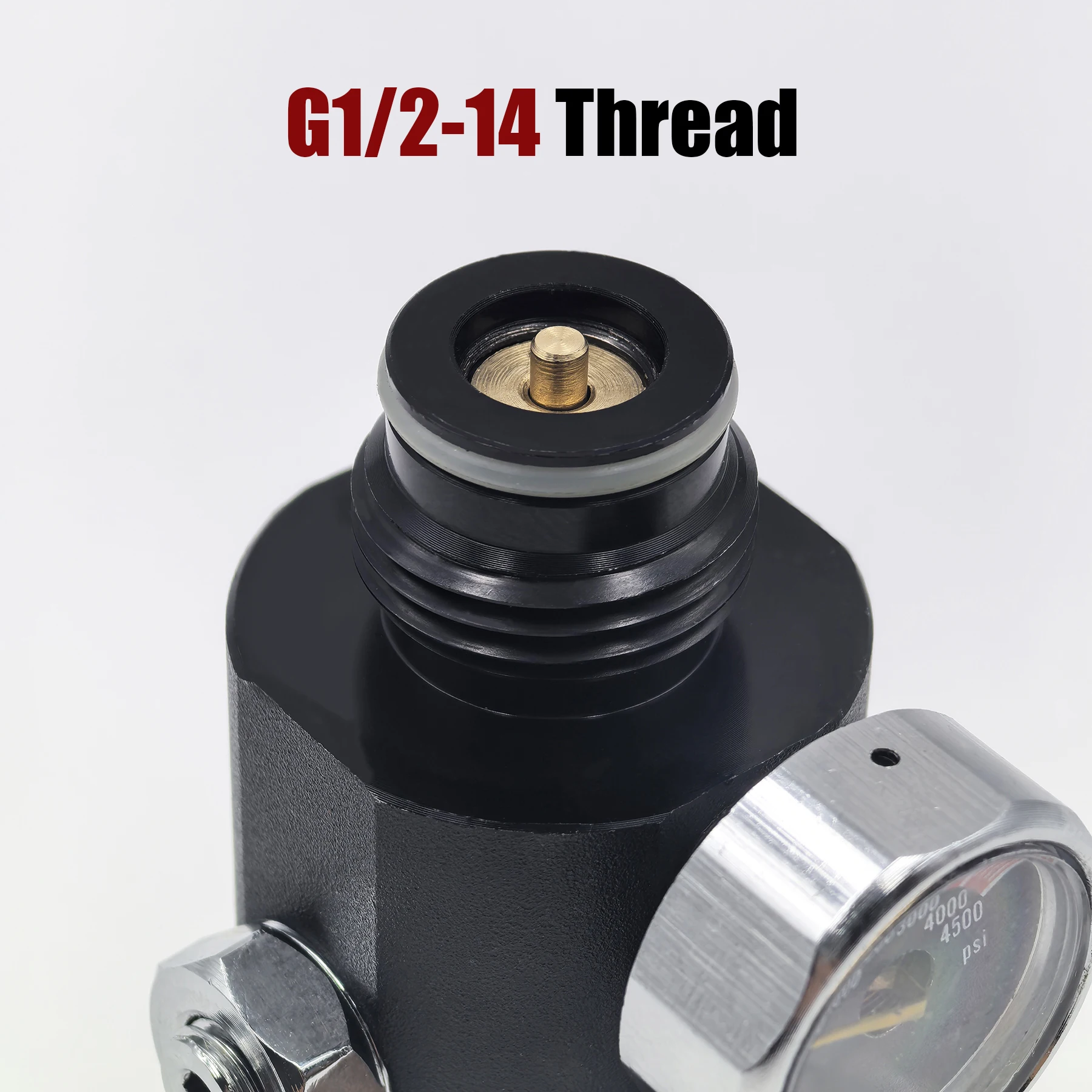

Output thread: G1/2(0.825-14NGO)
Weight: 0.19kg
Input Gauge: 5000psi
Output Gauge: 4500psi
Material: Aluminium Alloy and Stainless steel

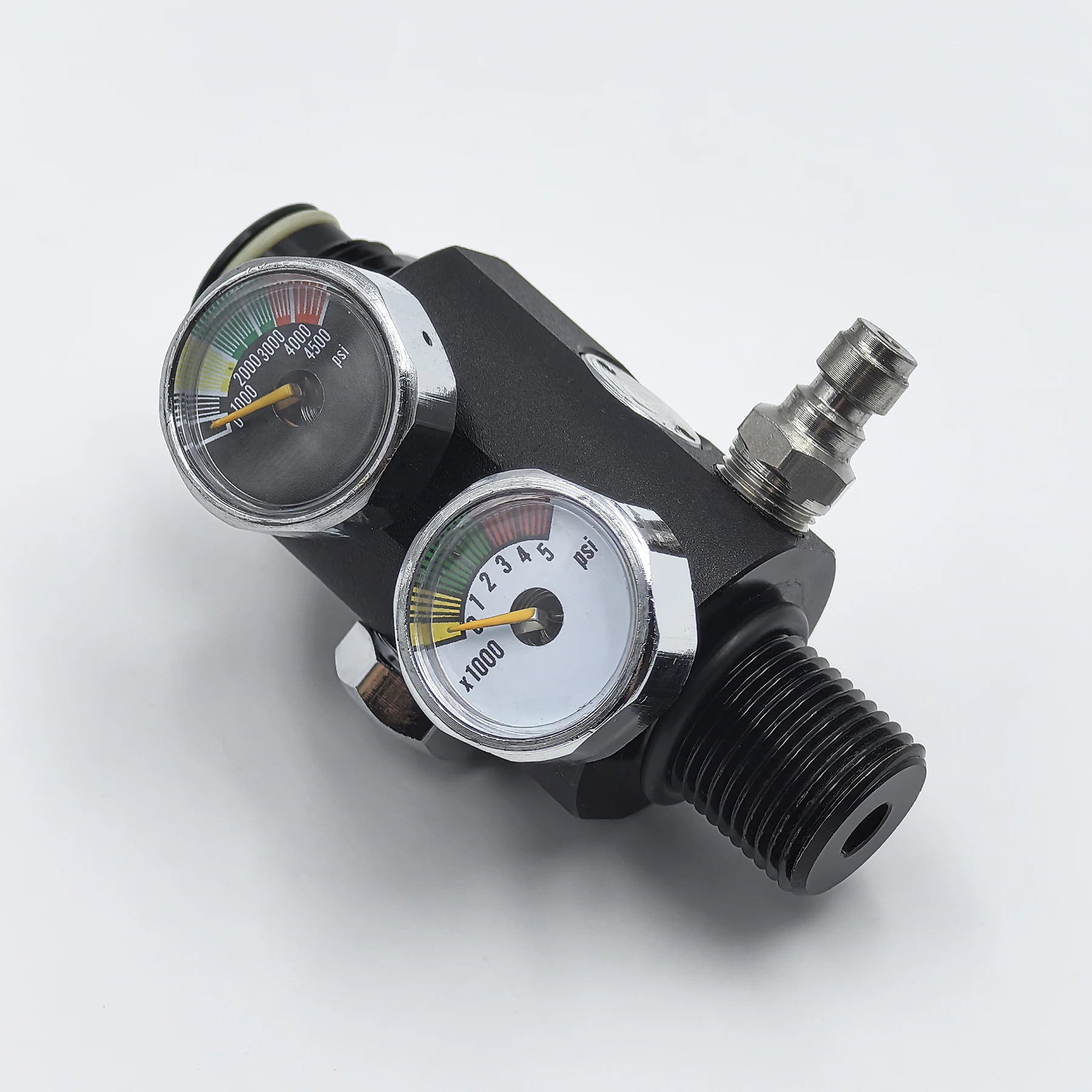

New design, output pressure range is larger and output pressure is more accurate and stable. The pressure gauge below shows the cylinder pressure (input pressure), while the pressure gauge above shows the output pressure.

How to use:

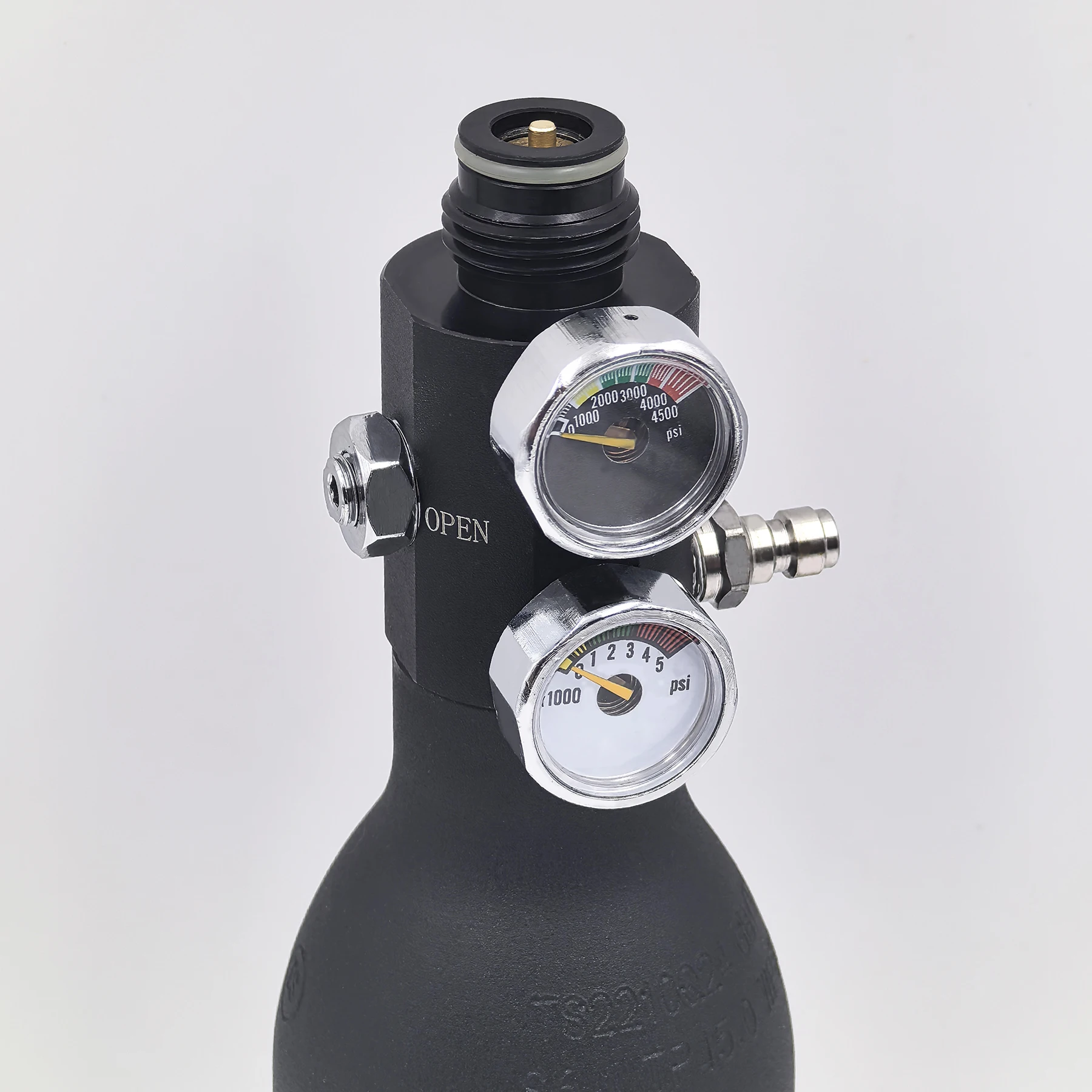

1. Install the regulator on the cylinder/tank.

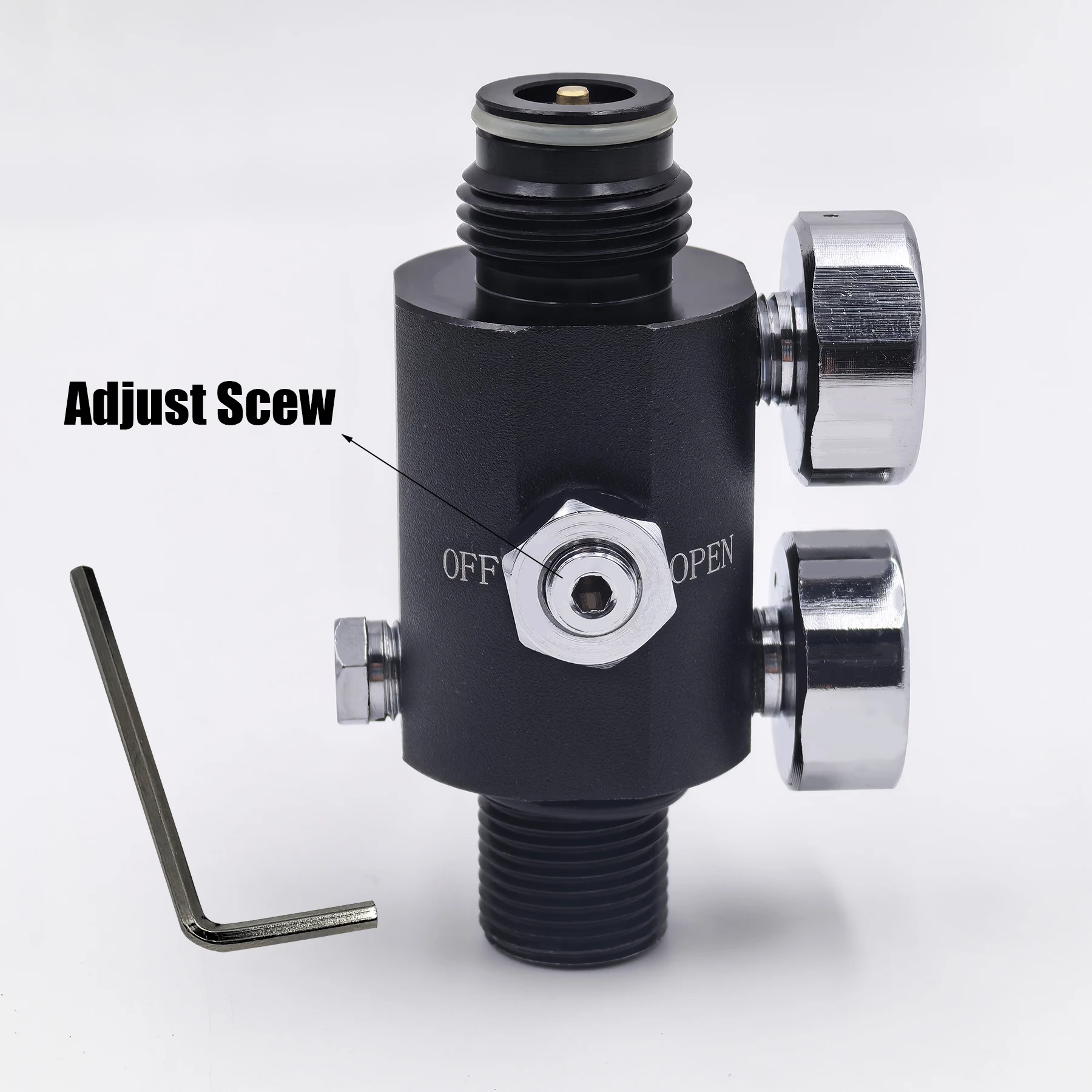

2. Rotate the adjustment screw to turn off the output. At this point, the output pressure is 0.
3. Filling the cylinder.

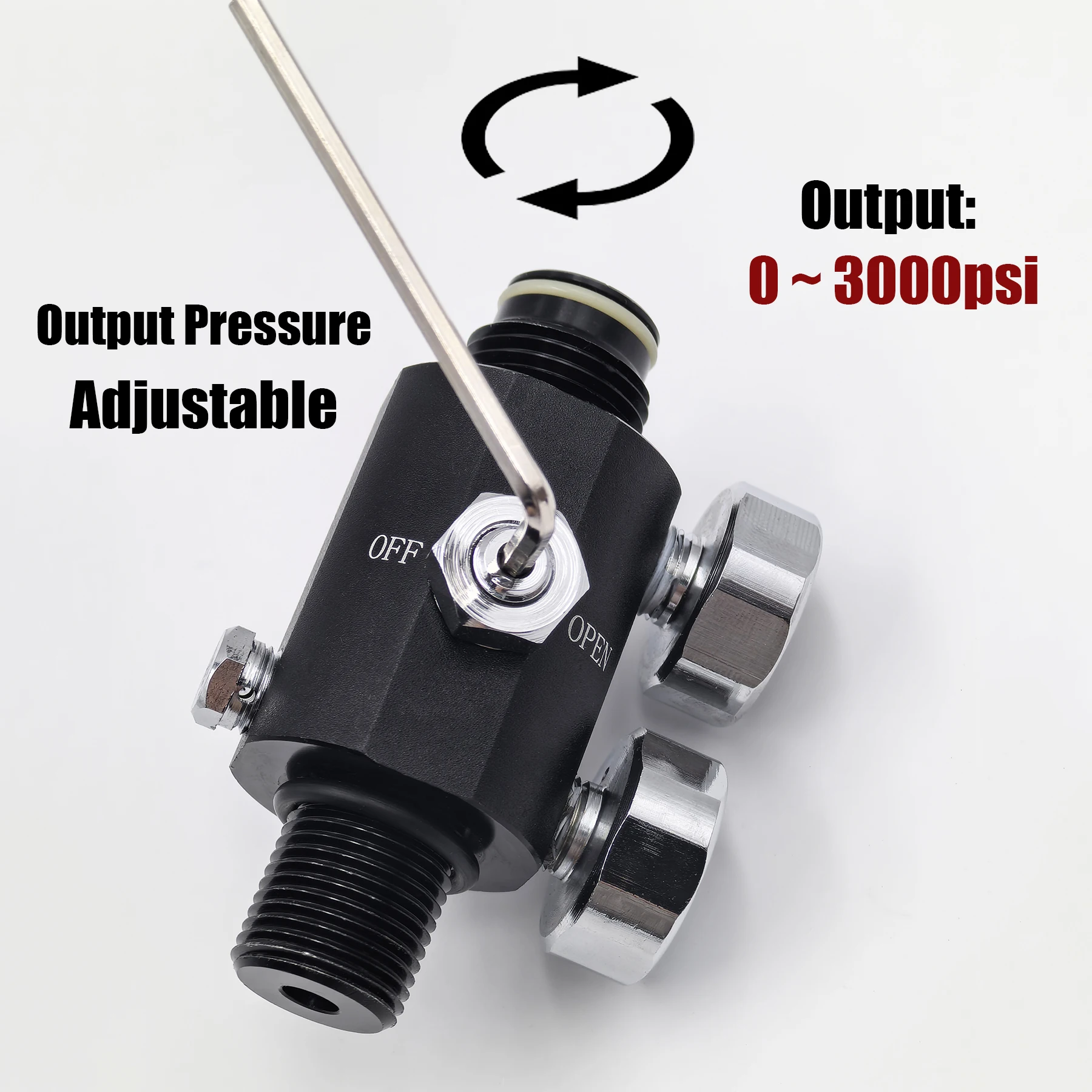

4. Use a hex wrench to turn the adjustment screw and observe the pressure gauge above, which will display the value of the output pressure.
5. After use, completely close the adjustment screw to set the output pressure to 0. Then remove the adapter.

Please refer to the usage video for detailed instructions.

Uses: outdoor sports, fire breathing apparatus air bottle, scuba breathing apparatus air bottle, constant pressure valve, high pressure pump, can also be equipped in fire, medical rescue, rescue and other vehicles, in the fire, coal mine and chemical accidents and other disaster accident scene.
