SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: None

Choice: yes

Fuel: Electric

Hign-concerned Chemical: None

Origin: CHINA

Power (W): Electric

Structure: Self-Priming Pump

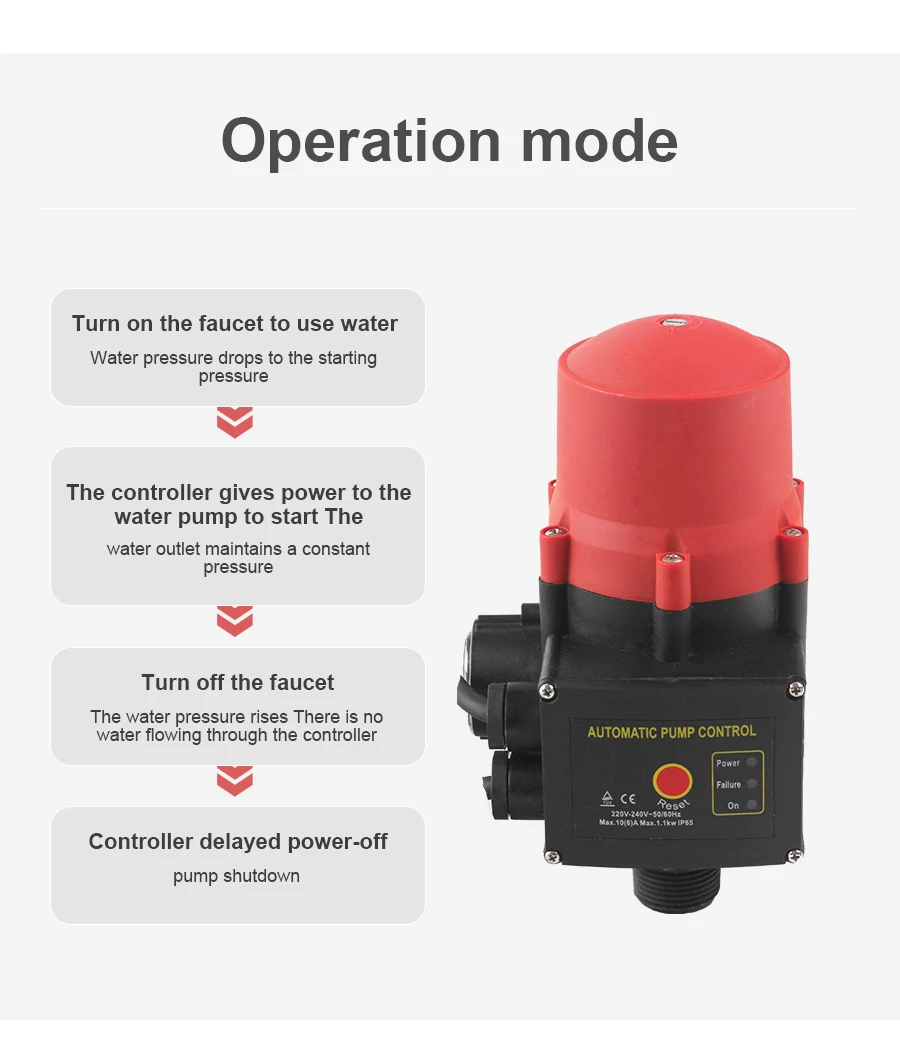

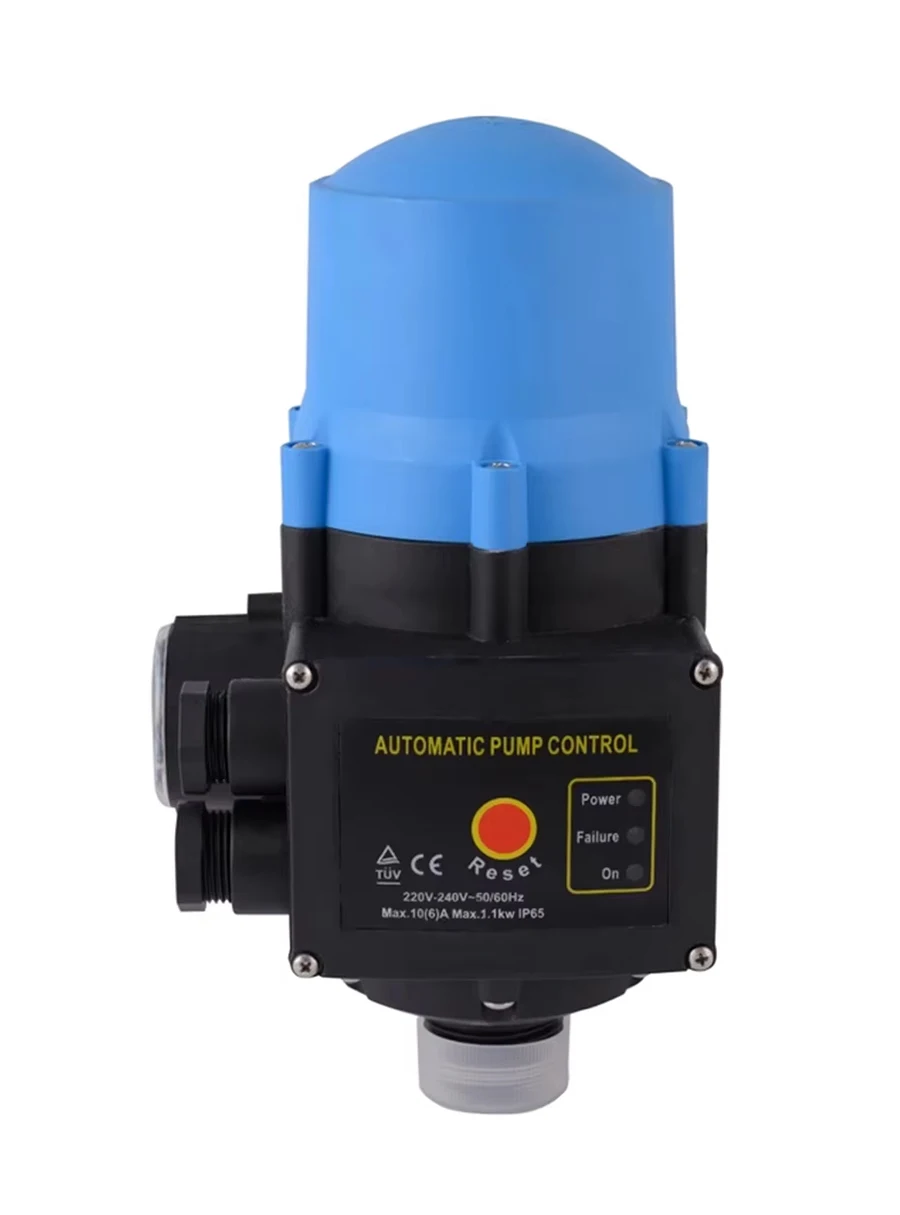

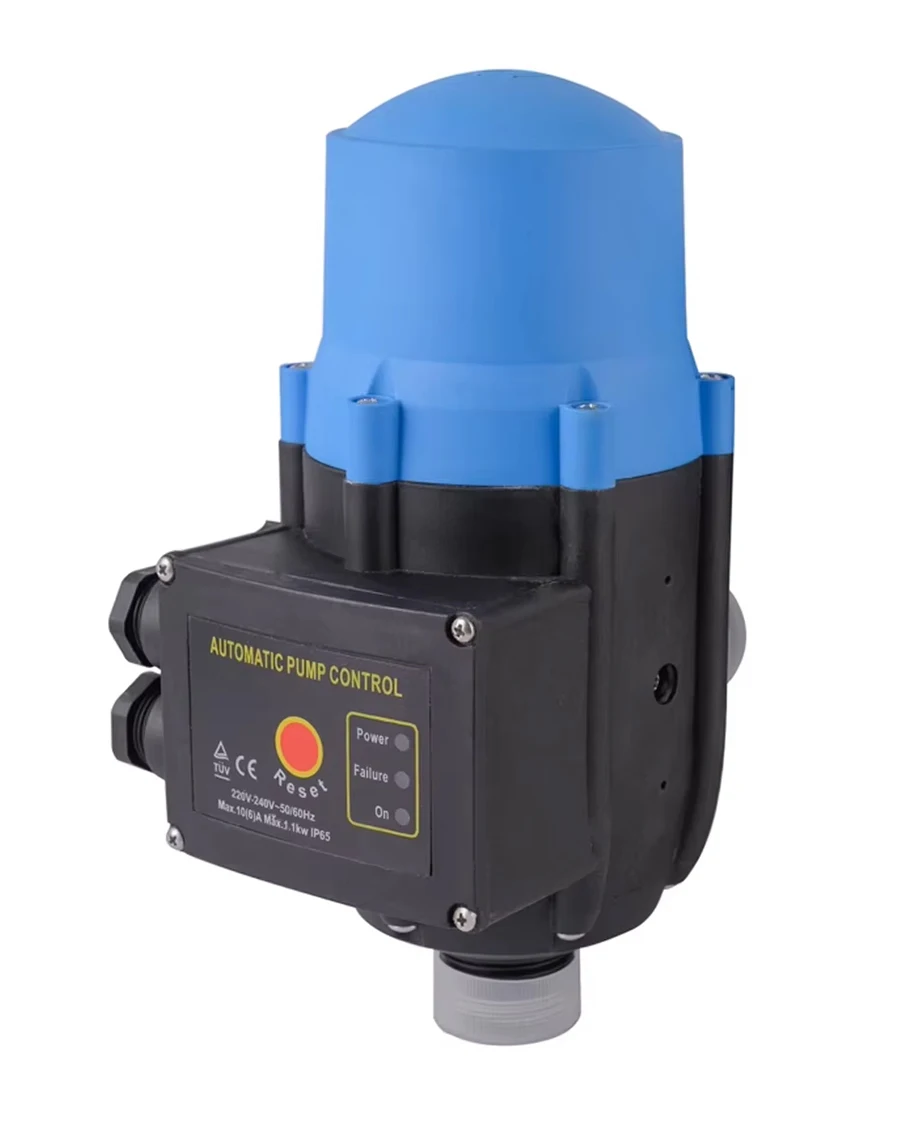

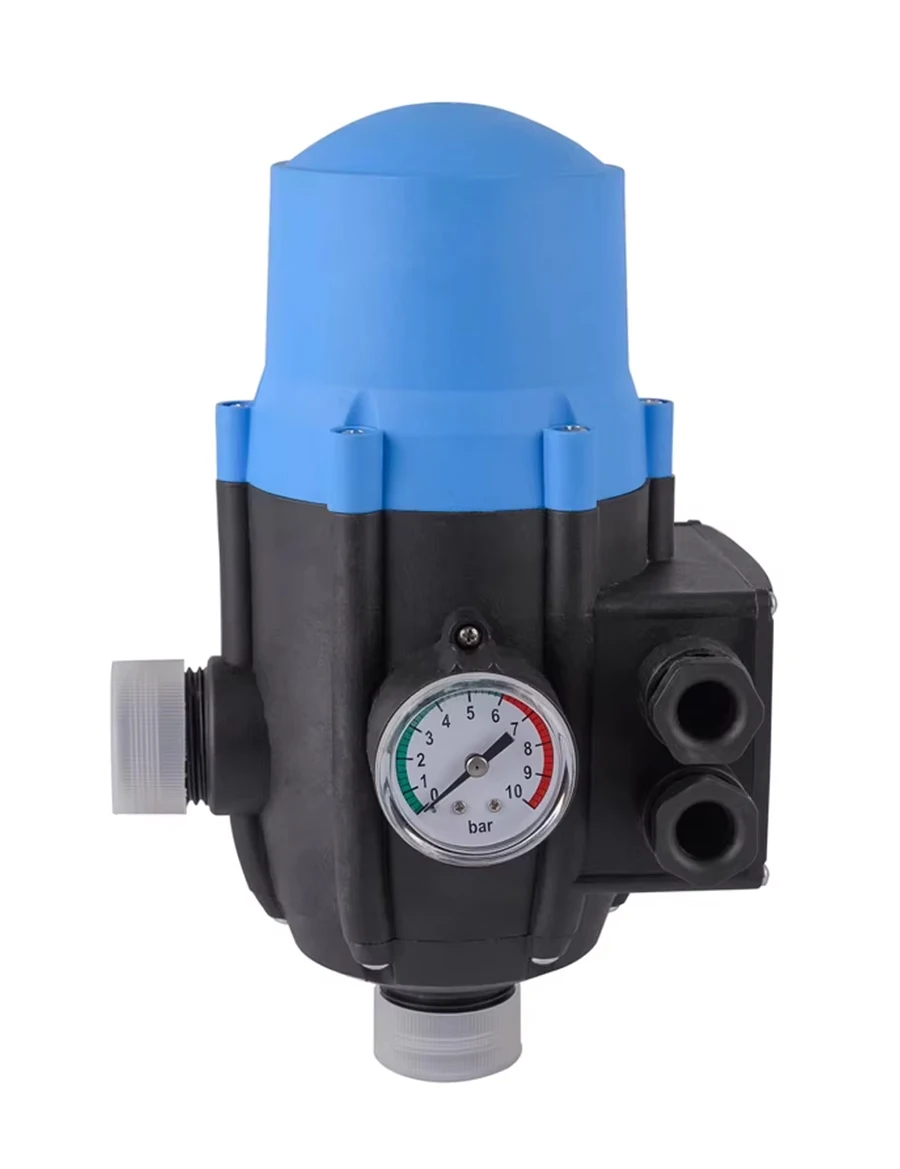

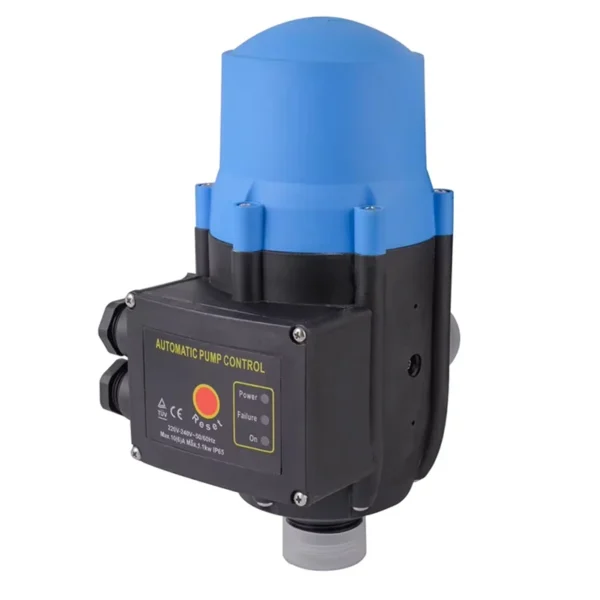

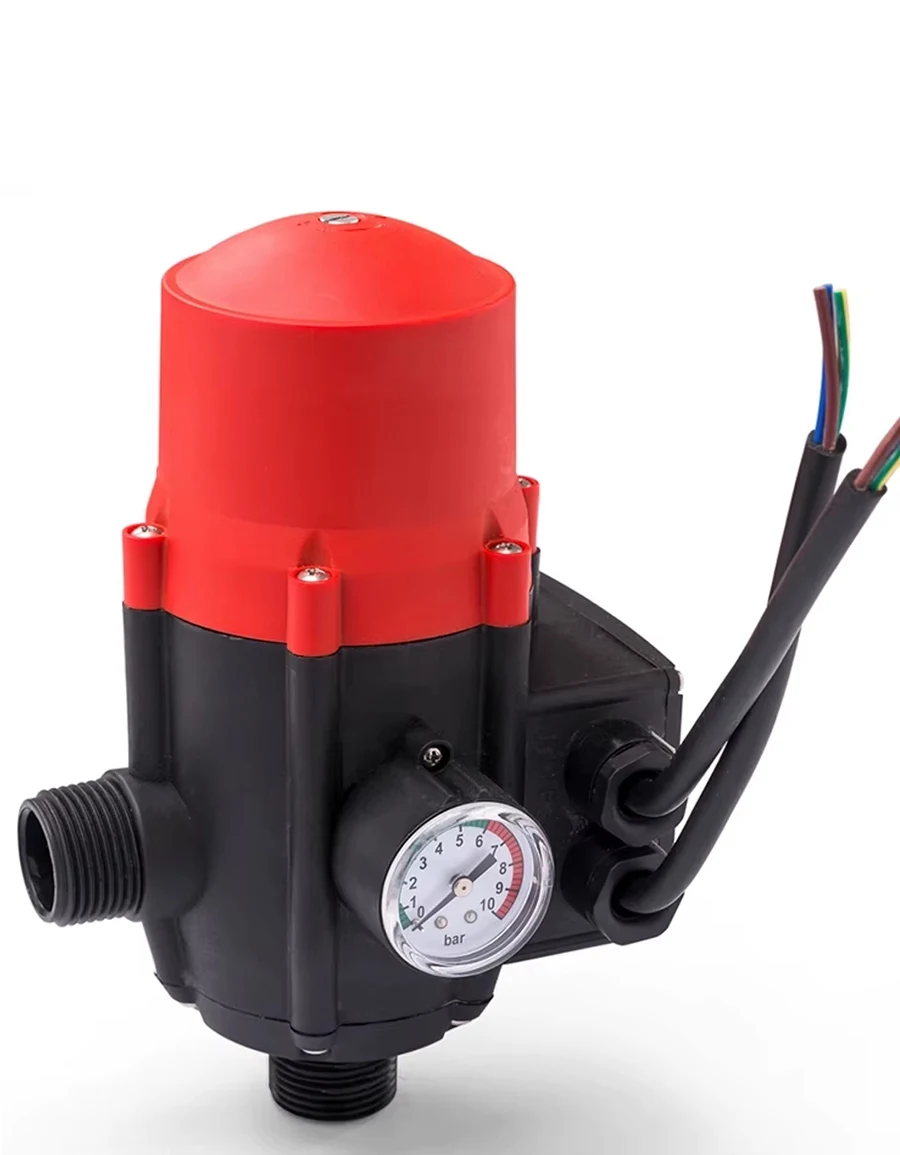

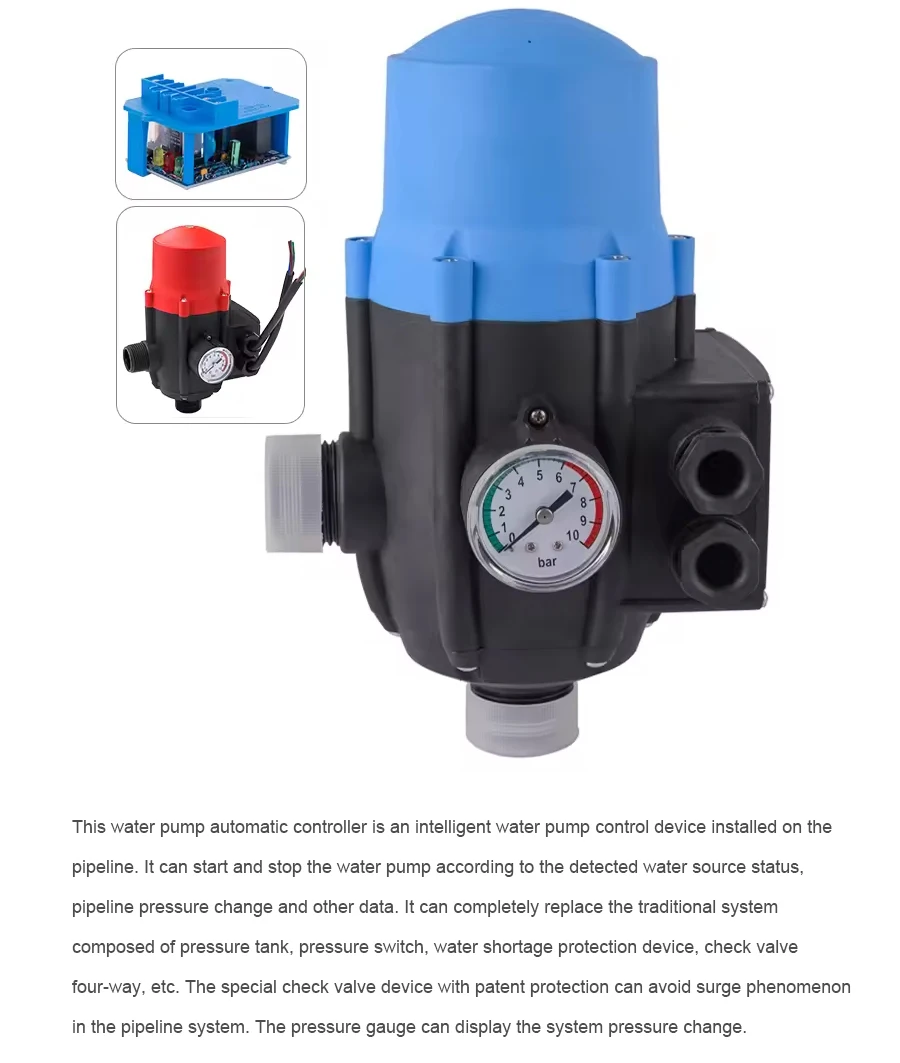

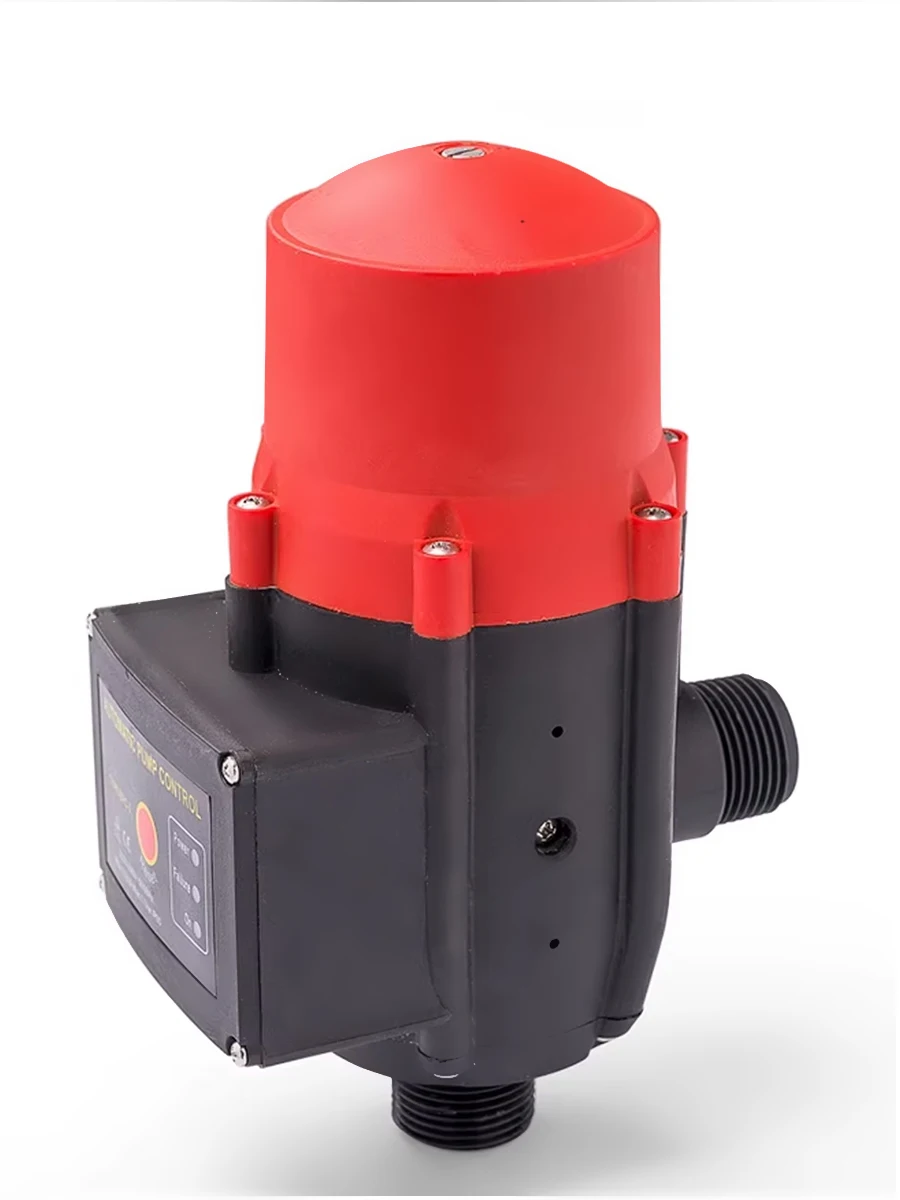

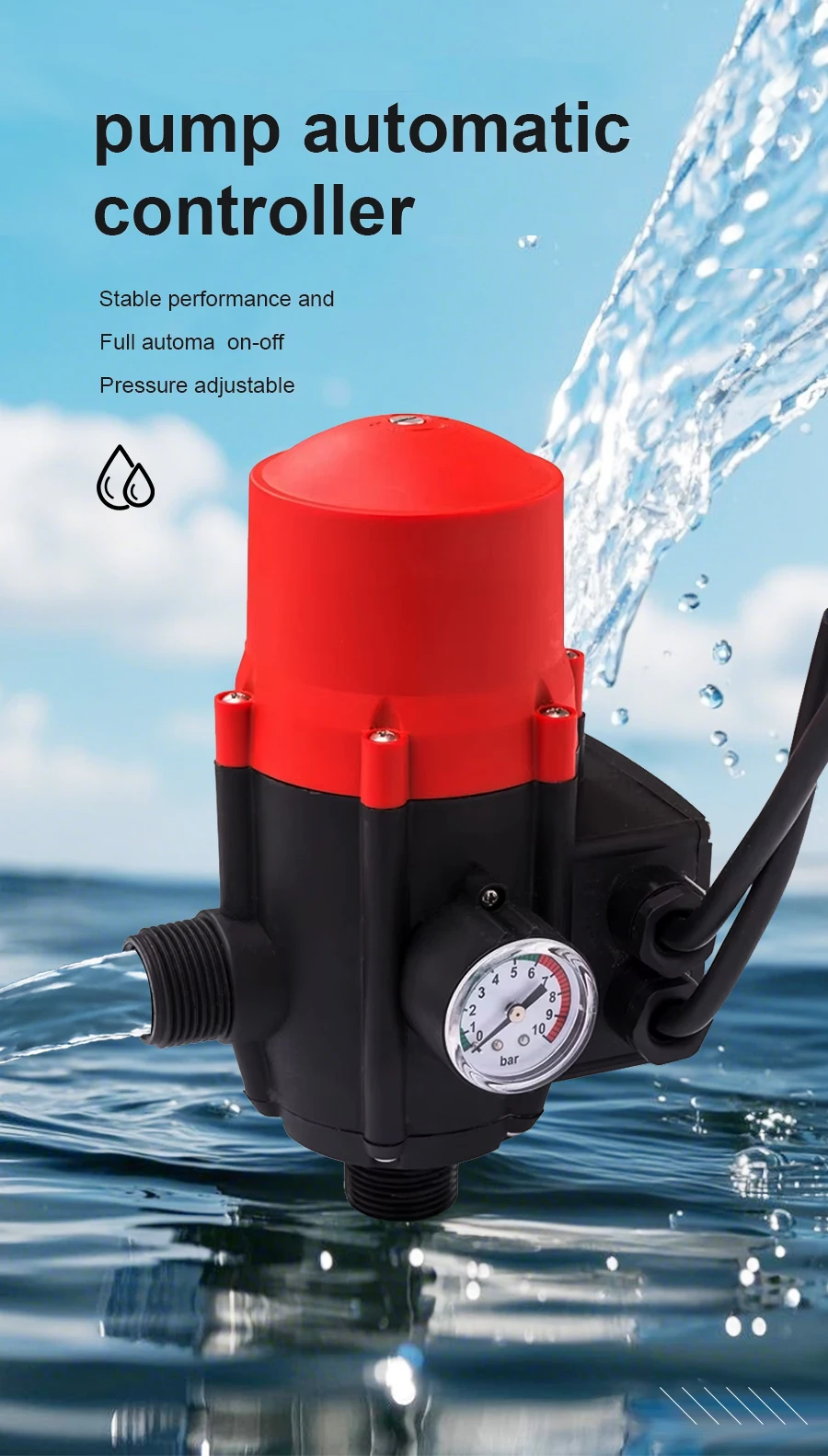

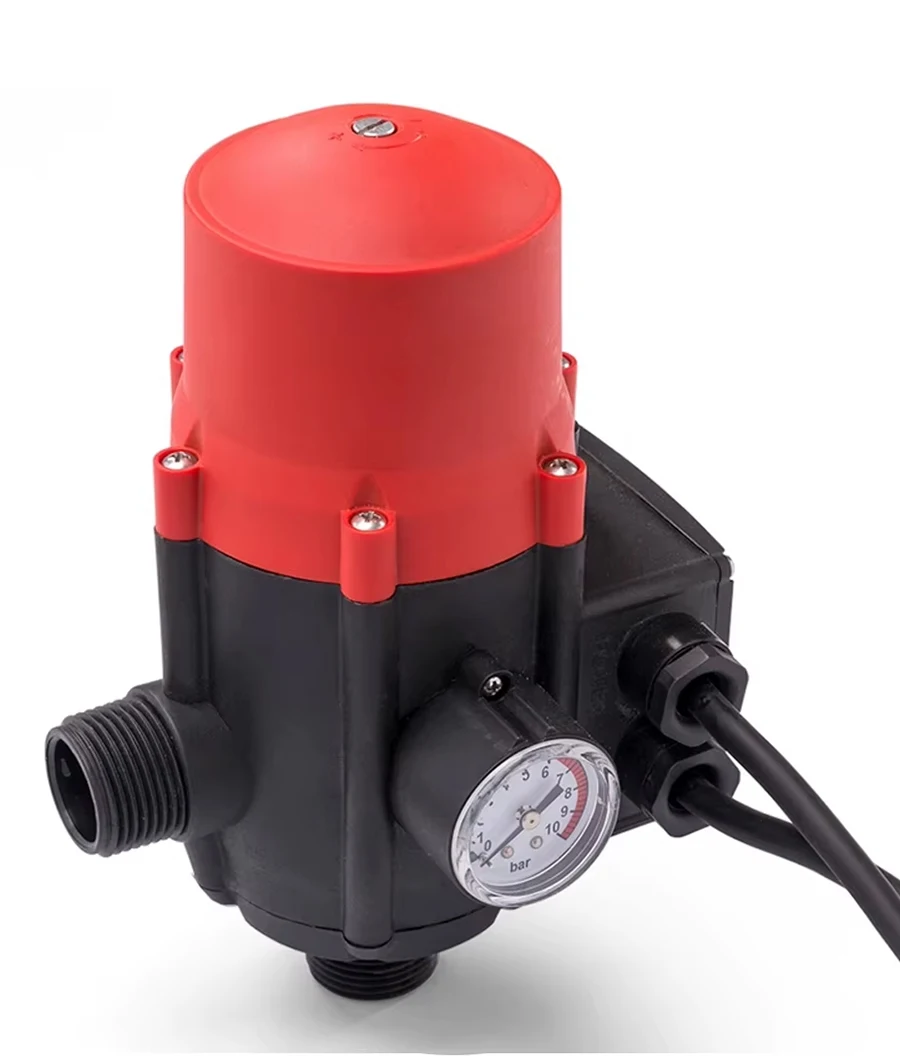

This water pump automatic controller is an intelligent water pump control device installed on the pipeline. It can start and stop the water pump according to the detected water source status, pipeline pressure change and other data. It can completely replace the traditional system composed of pressure tank, pressure switch, water shortage protection device, check valve four-way, etc. The special check valve device with patent protection can avoid surge phenomenon in the pipeline system. The pressure gauge can display the system pressure change.

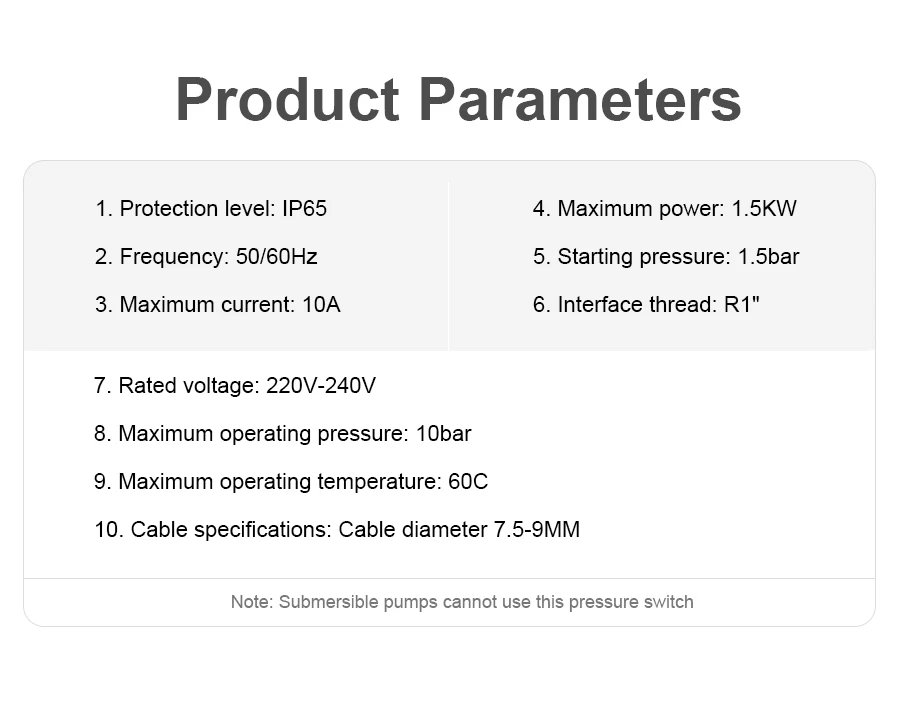

1. Rated voltage: 220V-240V
2. Frequency: 50/60Hz
3. Maximum current: 10A
4. Maximum power: 1.5KW
5. Starting pressure: 1.5bar
6. Maximum operating pressure: 10bar
7. Interface thread: R1"
8. Protection level: IP65
9. Maximum operating temperature: 60C
10. Cable specifications: Cable diameter 7.5-9MM
Note: Submersible pumps cannot use this pressure switch
